Network Protocols

Network protocols are a set of established rules and conventions that govern how data is transmitted, received, and interpreted across computer networks. They define the communication standards between devices, ensuring that information is exchanged accurately, securely, and efficiently. Protocols enable devices manufactured by different vendors to communicate seamlessly over the internet or local networks. Without these predefined protocols, reliable digital communication between systems would not be possible.

Background and Importance

The need for network protocols arose with the development of computer networking in the mid-twentieth century. Early computer systems were isolated and could not exchange data without specific hardware connections. The advent of packet-switched networks in the 1960s, notably the ARPANET project in the United States, led to the need for a universal set of communication standards.
To standardise communication, organisations such as the International Organization for Standardization (ISO) and the Internet Engineering Task Force (IETF) developed layered models and protocol suites. The OSI (Open Systems Interconnection) Model and the TCP/IP Model became the two primary frameworks guiding the design and functioning of modern communication networks.
Network protocols are crucial because they:

• Enable interoperability between diverse devices and systems.
• Ensure data integrity and error detection during transmission.
• Define addressing and routing mechanisms to deliver data to the correct destination.
• Provide security and authentication for reliable communication.
• Support scalability and standardisation of network architectures globally.

Classification of Network Protocols

Network protocols can be broadly classified based on their functions in different layers of the networking model:

1. Application Layer Protocols – Used for communication between software applications.Examples: HTTP, HTTPS, FTP, SMTP, POP3, IMAP, DNS, Telnet, SNMP.
2. Transport Layer Protocols – Manage end-to-end communication, flow control, and error correction.Examples: TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).
3. Network Layer Protocols – Handle logical addressing, routing, and packet forwarding.Examples: IP (Internet Protocol), ICMP (Internet Control Message Protocol), ARP (Address Resolution Protocol), RIP (Routing Information Protocol), OSPF (Open Shortest Path First).
4. Data Link Layer Protocols – Define rules for data framing, error detection, and access control to physical media.Examples: Ethernet, PPP (Point-to-Point Protocol), HDLC (High-Level Data Link Control).
5. Physical Layer Protocols – Specify electrical and mechanical characteristics of transmission media, such as cables and connectors.Examples: IEEE 802.3 (Ethernet standards), DSL, and Wi-Fi (IEEE 802.11).

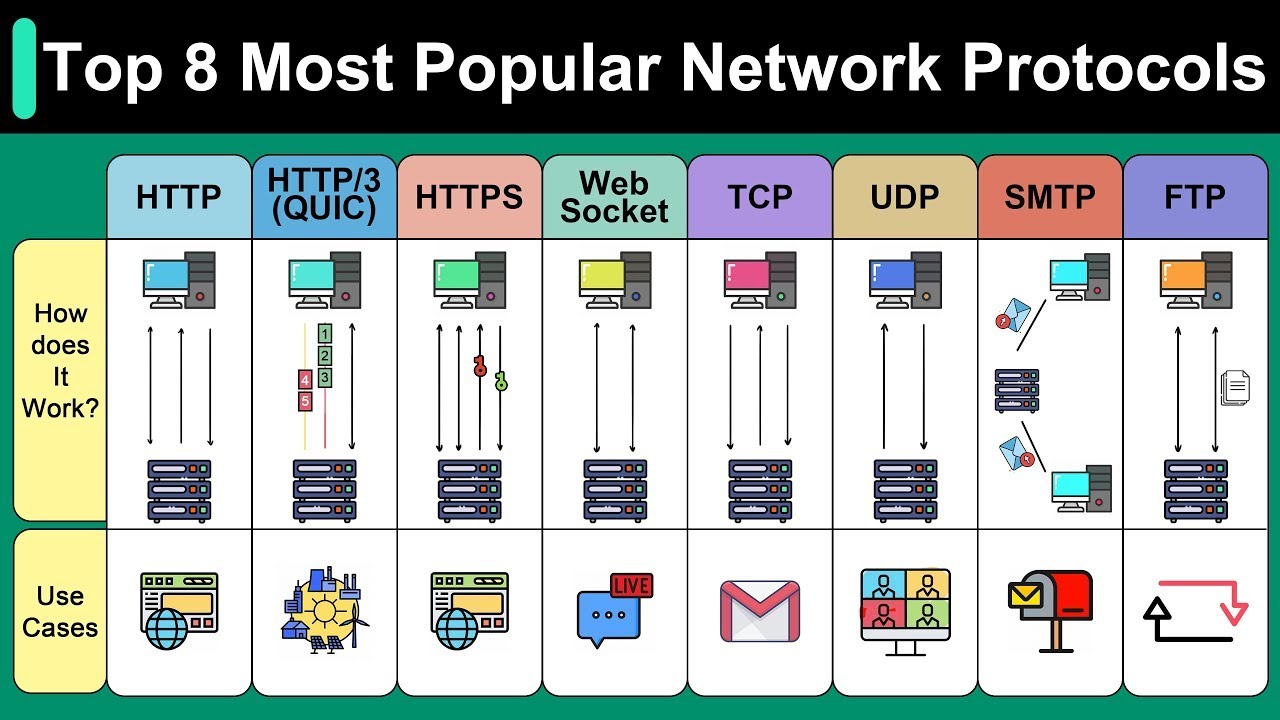

Common Network Protocols and Their Functions

1. Transmission Control Protocol (TCP): TCP is a connection-oriented protocol that ensures reliable data transmission between devices. It divides large messages into smaller packets, transmits them sequentially, and reassembles them at the destination. TCP also performs error checking and retransmission of lost packets, making it suitable for applications like web browsing, email, and file transfers.
2. Internet Protocol (IP): IP is responsible for addressing and routing packets across networks. It defines the logical addressing scheme used to identify each device, known as an IP address. Two main versions exist: IPv4 and IPv6. IP works closely with TCP, forming the core of the TCP/IP suite that underpins the internet.
3. Hypertext Transfer Protocol (HTTP/HTTPS): HTTP governs the communication between web browsers and servers. It defines how web pages, images, and files are requested and transmitted over the internet. HTTPS (HTTP Secure) is an encrypted version using SSL/TLS protocols to ensure privacy and security of online transactions.
4. File Transfer Protocol (FTP): FTP is used for transferring files between a client and a server over a network. It allows users to upload, download, or manage files remotely. Secure variants like SFTP (SSH File Transfer Protocol) and FTPS provide encrypted file transfers.
5. Simple Mail Transfer Protocol (SMTP): SMTP is the standard protocol for sending emails. It works in conjunction with POP3 (Post Office Protocol) and IMAP (Internet Message Access Protocol), which are used for retrieving and managing emails from servers.
6. Domain Name System (DNS): DNS translates human-readable domain names (e.g., www.example.com) into numerical IP addresses. This process, called name resolution, allows users to access websites without remembering complex IP numbers.
7. Dynamic Host Configuration Protocol (DHCP): DHCP automatically assigns IP addresses and configuration settings to devices on a network. It simplifies network administration by dynamically allocating IP addresses rather than requiring manual configuration.
8. Secure Shell (SSH): SSH provides secure remote login and command execution over encrypted channels. It replaces older insecure methods such as Telnet, ensuring confidentiality and integrity of data transmitted between client and server.
9. Simple Network Management Protocol (SNMP): SNMP enables network administrators to monitor and manage devices such as routers, switches, and servers. It collects information about network performance and sends alerts about potential problems.

Network Protocol Models

1. OSI Model (Open Systems Interconnection): Developed by ISO, the OSI model standardises network communication into seven layers — Physical, Data Link, Network, Transport, Session, Presentation, and Application. Each layer performs specific tasks and interacts only with the layers directly above and below it.
2. TCP/IP Model: The TCP/IP model is a practical framework on which the modern internet operates. It has four layers:

• Link Layer – Corresponds to the OSI Physical and Data Link layers.
• Internet Layer – Manages logical addressing and routing using IP.
• Transport Layer – Provides end-to-end data delivery using TCP or UDP.
• Application Layer – Includes protocols such as HTTP, SMTP, and DNS.

The TCP/IP model is simpler and more widely used than the OSI model, forming the foundation of modern networking.

Security Protocols

With the rise of cyber threats, network security protocols play an essential role in protecting data during transmission. Common examples include:

• SSL/TLS (Secure Sockets Layer / Transport Layer Security): Encrypts communication between clients and servers, ensuring data privacy.
• IPSec (Internet Protocol Security): Provides authentication and encryption at the network layer for secure virtual private networks (VPNs).
• HTTPS: Combines HTTP with SSL/TLS for secure web browsing.
• Kerberos: An authentication protocol using encrypted tickets to verify user identity in secure networks.

Role of Protocols in Modern Networking

Network protocols underpin every aspect of communication in the digital age, from sending an email to streaming a video. Their roles include:

• Data Routing and Delivery: Ensuring packets reach the correct destination.
• Error Detection and Correction: Maintaining data accuracy during transmission.
• Flow and Congestion Control: Managing traffic to prevent overload on networks.
• Security and Privacy: Encrypting and authenticating data exchanges.
• Interoperability: Allowing devices and systems from different manufacturers to communicate seamlessly.

Emerging Protocols and Trends

As technology evolves, new protocols continue to emerge to meet the demands of high-speed, secure, and efficient communication:

• HTTP/3 (based on QUIC): Improves performance and latency of web applications.
• MQTT (Message Queuing Telemetry Transport): Designed for lightweight communication in IoT (Internet of Things) devices.
• CoAP (Constrained Application Protocol): Used in resource-constrained environments like smart sensors.
• 5G Network Protocols: Enable ultra-reliable, low-latency communication for modern wireless networks
